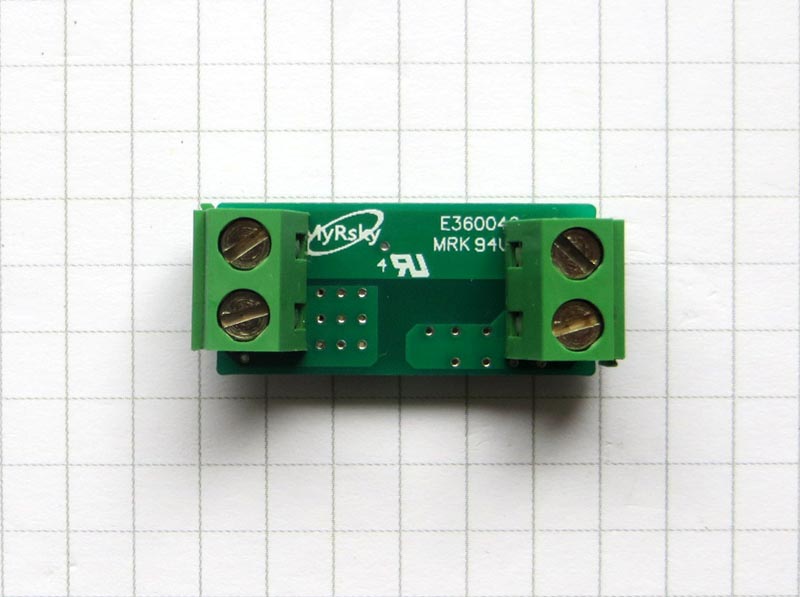

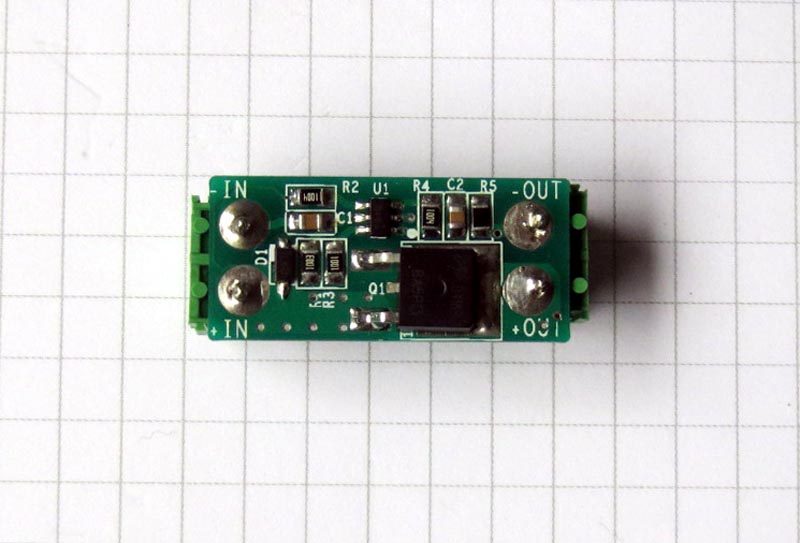

This DC switch will disconnect your load from the battery when it's voltage goes below 9.7 Volt. The switch is designed to protect 3S Lithium batteries from overdischarging. They're great for RC projects or lab circuits. It draws very little current when the load is disconnected.

• Switching current - up to 10A (limited by traces and terminals. MOSFET can handle 40A)
• Does not require external power
• Draws only 150 uA in OFF state
• Hysteresis 500mV (Load will be connected when input voltages increase over 10.2Volt)
• Switching threshold voltage can be adjusted for 2S or 4S batteries or to the voltage of your choice up to 16V. Hysteresis voltage also can be changed. E-mail your requirements.
• Boards can be shipped without terminals so you can solder your wires directly to the board.
